Year of Construction: 2021
Total Covered: 162m²
The project is located in a very quiet and desirable neighborhood in Ayios
Athanasios, close to amenities (supermarkets, restaurants, schools, etc.) and a
short walk from the beach and ‘Dasoudi’ park along the seafront to the south and
the retail outlets and restaurants of Kolonakiou Avenue to the north. The
development affords easy access to Limassol City Centre and the highway that in
turn provides high connectivity to both airports and the rest of the island.
In the immediate vicinity, there is a large well-maintained public green space that
lies diagonally across the street to the south-east of the site ensuring uninterrupted
views towards the sea from the upper levels of the proposed development.

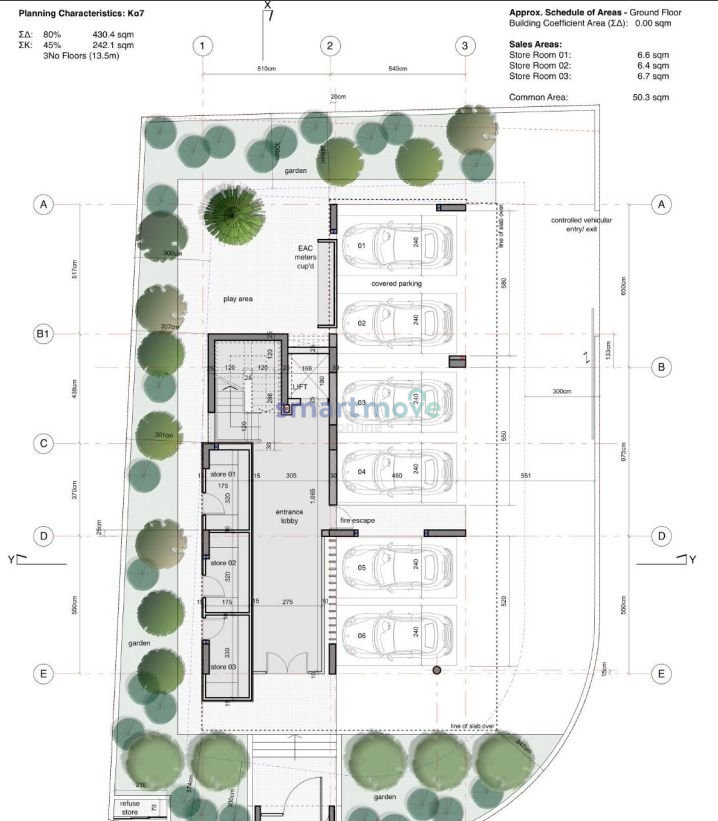

The project itself has arranged over three floors. The ground floor area is allocated
to a large entrance lobby, covered parking for 6No. cars (2No. per apartment) and
3No. storerooms. Controlled access points are located for both vehicular and

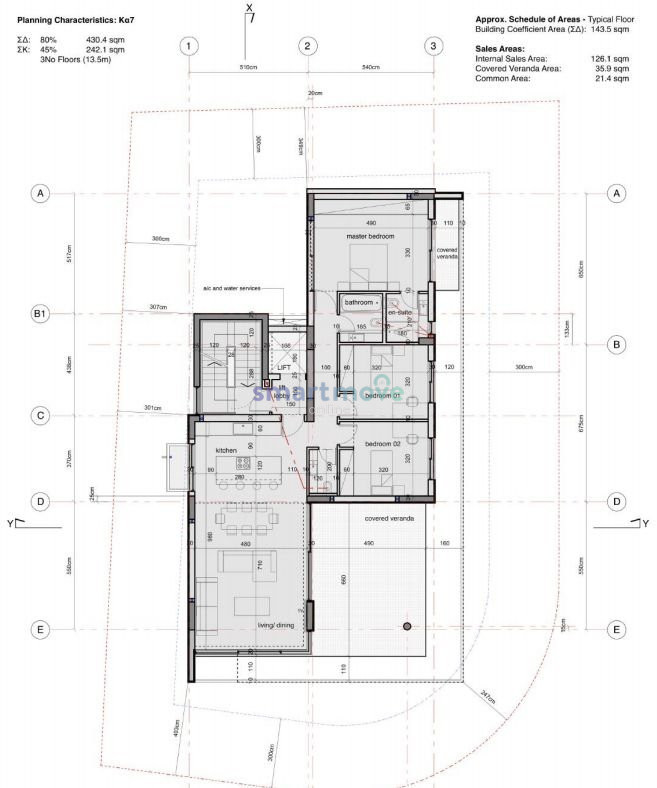

pedestrian entry/ exit points. The floors above generate 3No apartments. One
generously sized three-bedroom apartment per floor. The third-floor apartment has
an enhanced floor to ceiling height over the living/ dining room (3.8m) and has
exclusive use of the roof garden including a sun lounge and plunge pool.

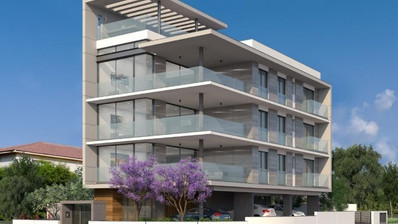

The proposal responds directly to its context and through its orientation unlocks the
available sea views from the upper levels across the public green opposite. The
large veranda on the southeast corner of the site annexed to the living/ dining room
is a recessive element that relates to the corner situation in planning terms and
provides a notional hinge between the daytime and nighttime zones of the
apartments. The two zones are expressed and architecturally differentiated. One is
almost entirely clad in glass while the other appears solid with punctured glazed
apertures. The two are linked by a continuous ribbon-like edge provided by the
verandas and architectural projections that extends vertically to the perforated slab
over the roof garden area. The intention through the overall material and texture
palette selection is to render simplicity of form.
Reinforced concrete frame comprising of foundations, columns, beams, and slabs
designed in accordance with the regulations for seismic design and construction.
2.1 External walls are of 25cm hollow clay bricks with thermal insulation either as
part of an integrated system (Baumit or similar) or expanded polystyrene where it
occurs behind the cladding. In both cases, the insulation is fixed to the external
face of the brickwork.
2.2 The internal walls are 10cm hollow clay bricks.
2.3 Party walls between apartments and common areas are 25cm hollow clay
- All ceilings are fair face concrete, skimmed and finished in 3 coats of high-quality
imported emulsion paint.
- Where required to accommodate the mechanical installation (generally over the
kitchen area, in corridors, bathrooms, and guest WC) plasterboard ceilings on a
proprietary metal frame will be used. The plasterboard will be taped, skimmed and
finished in 3 coats of high-quality imported emulsion paint.
- In the bathrooms, the ceilings will be painted in an imported acrylic (anti-mildew)
- All roof and veranda areas will be waterproofed with the use of a highly flexible
4.2 Thermal Insulation
- Thermal insulation installed to all external elements of the apartments (walls,
columns, beams, first-floor slab, roof slab) to comply and achieve the appropriate
Energy Performance Certificate.
5.0 DOORS AND WINDOWS:
5.1 Main entrance doors to apartments and common stairs are finished in timber
and provide half hour fire resistance as required by the Fire Department. The
entrance doors to the apartments will also provide a high-security rating.
5.2 All internal doors constructed of softwood frame and timber laminate or
lacquered doors with high-quality stainless steel ironmongery.
5.3 All windows and patio doors constructed with aluminium thermal sections that are
anodized or powder coated. The large openings in the living/ dining area are lift and
slide. High performance, double glazed, low-E glazing installed throughout.
6.1 All balustrades externally will be constructed in laminate glass and fixed to a
proprietary aluminium section (Alumic or similar).
6.2 Balustrade and handrails to the stairs shall be in metal and painted in Paramatti
All wardrobes will be fabricated with an internal melamine finish with soft closing
mechanisms. The doors will be in a timber laminate or lacquered finish.
8.1 Kitchens shall have a synthetic granite worktop and niche.
8.2 The units and cupboards will be fabricated with an internal melamine finish with
soft closing mechanisms. The doors will be in a timber laminate or lacquered
9.0 SANITARY WARE:
9.1 Imported high-quality bathroom fittings and mixers shall be installed with all the
necessary accessories. The WC will be wall hung and the cistern will be concealed.
9.2 A stainless steel sink will be provided in the kitchen with imported high-quality
10.0 WATER SUPPLY:
10.1 A hot and cold water supply with a 1-tonne water tank shall be installed. The cold
water supply will be provided by the pressurizing unit located on the roof to all
sanitary appliances and to the electric hot storage cylinder.
10.2 Additionally a separate line for drinking water will be installed to the kitchen sink.
10.3 All cold and hot water pipes will be PPR up to the manifolds.
The lift will serve all floors including the roof garden. High-quality internal car finishes
will be installed to Architect’s specifications.
12.0 ELECTRICAL INSTALLATION:
12.1 The gate and the ground floor entrance door will be controlled with videophone
to each apartment.
12.2 TV points shall be provided in the living/ dining area and all bedrooms.
12.3 Single telephone points shall be provided in the living/ dining room and double
telephone points in all the bedrooms.
12.4 Switches and safety fuses or bipolar switches and light indicators will be
installed for all kitchen appliances in accordance with the Electricity Authority’s
12.5 Solar panels and an electric water heater will be provided for each
12.6 USB sockets shall be provided in the bedrooms and living/ dining areas.
12.7 A KNX base lighting control system (smart home) will be installed in the living/
dining kitchen area.
12.8 Provision for a burglar alarm will be installed.
· 2 Parking places for each apartment and storage room
· Penthouse with private roof garden and a plunge swimming pool/Jacuzzi 3mx3m
· Provisions VRV air condition
· Provisions for under floor heating
